Client-side routing for dynamic pages

In this article, we'll see how to create a dynamic page and link it to other pages on the frontend.

Let's modify our Star Wars example by adding 2 new pages:

• A static page /star-wars/films showing a list of all the Star Wars films
• A dynamic page /star-wars/film/[filmId] showing the details of the Star Wars film with filmId

Create the film details page

1. Add the logic to grab the filmId from the URL pattern /star-wars/film/[filmId] so it can be used to fetch the film information from SWAPI, to the dynamic-page-handler present in the backend/index.ts file
   Dynamic page handler implementation for the film details pagetypescript

   'dynamic-page-handler': async (request: Request): Promise<DynamicPageSuccessResult | null> => {
       const [_, filmId] = request.query.path.match(new RegExp('/star-wars/film/([^ /]+)'));
       if (filmId) {
         return await axios
           .post<DynamicPageSuccessResult>('https://swapi-graphql.netlify.app/.netlify/functions/index', {
             query: '{film(id:"' + filmId + '") {id, title, openingCrawl, releaseDate}}',
           })
           .then((response): DynamicPageSuccessResult => {
             return {
               dynamicPageType: 'example/star-wars-film-page',
               dataSourcePayload: response.data,
               pageMatchingPayload: response.data,
             };
           })
           .catch((err) => {
             return {
               dynamicPageType: 'example/star-wars-film-page',
               dataSourcePayload: { err },
               pageMatchingPayload: { err },
             };
           });
       }
       return null;
     },


2. Create a custom Frontend component in the Studio with the following schema

   Schema for the example/star-wars-film Frontend componentjson

   {
     "tasticType": "example/star-wars-film",
     "name": "Star wars movie",
     "icon": "list",
     "category": "Documentation Examples",
     "schema": [
       {
         "name": "Configuration",
         "fields": [
           {
             "label": "film",
             "field": "film",
             "type": "dataSource",
             "dataSourceType": "example/star-wars-film",
             "required": true
           }
         ]
       }
     ]
   }

   To do that, go to the Components area in the Studio, click Create schema, paste the above JSON into the editor, then click Publish
3. Create a React component in the tastics/star-wars/film/index.tsx that displays the film data passed to the page by the dynamic-page-handler
   React component to render film detailstypescript

   import React from 'react';

   const StarWarsFilmDetails = ({ data }) => {
     const film = data.data.film || {};
     return (
       <div>
         <h2>{film.title}</h2>
         <p> {film.openingCrawl}</p>
         <p>Released on {film.releaseDate}</p>
       </div>
     );
   };

   export default StarWarsFilmDetails;

4. Register StarWarsFilm component in the tastics/index.tsx file
   Register the example/star-wars-film Frontend componenttypescript

   import NotFound from './not-found';
   import Markdown from './markdown/tastic';
   import StarWarsFilm from './star-wars/movie';

   export const tastics = {
     default: NotFound,
     'example/star-wars-film': StarWarsFilm,
     'training/content/markdown': Markdown,
   };

5. From the Studio homepage, or the from the left menu, go to Developer > Dynamic pages.
6. Click Create schema, then paste the following JSON into the editor, and click Publish.
   Dynamic page schema for film details pagejson

   {
     "dynamicPageType": "example/star-wars-film-page",
     "name": "Star wars film",
     "category": "Documentation Example",
     "icon": "stars",
     "dataSourceType": "example/star-wars-film",
     "isMultiple": true
   }

   You need to use the Production environment while creating the dynamic page.
7. Go to the Dynamic pages section, select Star wars film, and create a New page version (testbed) in the Default page rule

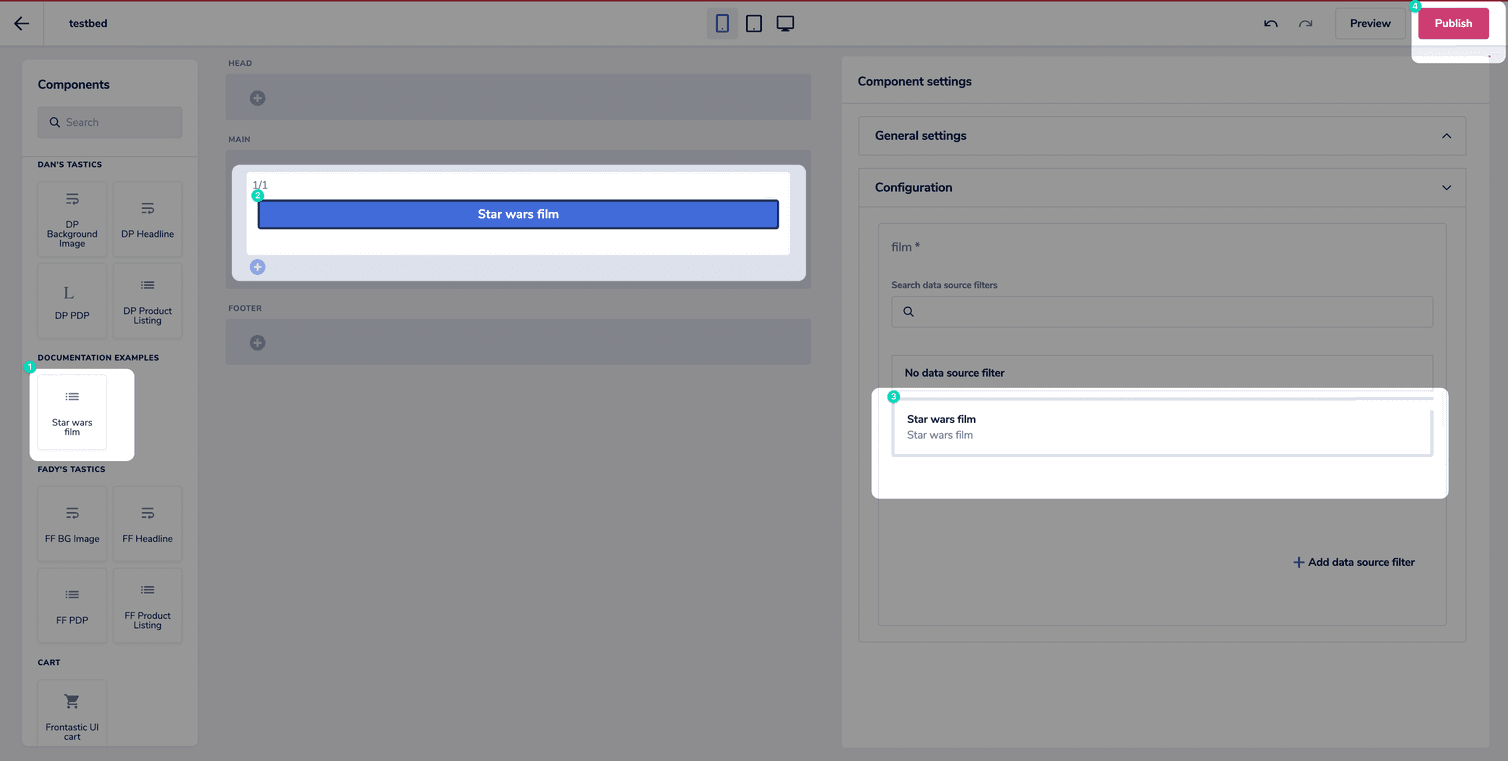

8. Use the Star Wars film component on the testbed page version as shown below

9. Open <http://localhost:3000/star-wars/film/ZmlsbXM6Mg==>, the film detail page renders in the browser.


Create the films list page

1. From the Studio homepage or the left menu, go to Developer > Data sources.

2. Create the schema for the data source.

   Data source schema for the example/star-wars-all-films data sourcejson

   {
     "customDataSourceType": "example/star-wars-all-films",
     "name": "Star wars all films",
     "category": "Content",
     "icon": "source",
     "schema": []
   }

3. Implement the data source extension in the backend/index.ts file
   Data source extension implementation for example/star-wars-all-filmstypescript

   'example/star-wars-all-films': async (
         config: DataSourceConfiguration,
         context: DataSourceContext,
       ): Promise<DataSourceResult> => {
         return await axios
           .post<DataSourceResult>('https://swapi-graphql.netlify.app/.netlify/functions/index', {
             query: '{allFilms { films {id, title, episodeID}} }',
           })
           .then((response) => ({
             dataSourcePayload: response.data,
           }))
       }

4. Go to the Components area and create a schema that specifies the data source you created earlier in the schema field
   Schema for example/star-wars-all-filmsjson

   {
     "tasticType": "example/star-wars-all-films",
     "name": "Star wars films",
     "icon": "list",
     "category": "Documentation Examples",
     "schema": [
       {
         "name": "Configuration",
         "fields": [
           {
             "label": "films",
             "field": "films",
             "type": "dataSource",
             "dataSourceType": "example/star-wars-all-films",
             "required": true
           }
         ]
       }
     ]
   }

5. Implement the React component in the index.ts, which renders links from the array of films provided by the data source extension
   React component to render list of filmstypescript

   import React from 'react';
   import Link from 'next/link';

   const StarWarsFilms = ({ data }) => {
     return (
       <div className={'pt-4'}>
         <h3 className={'mb-4'}>Star wars films</h3>
         {data.films.dataSource.data.allFilms.films.map((film) => (
           <Link key={film.id} href={`/star-wars/film/${film.id}`}>
             <a className={'block underline'}>{film.title}</a>
           </Link>
         ))}
       </div>
     );
   };

   export default StarWarsFilms;

6. Register this component in the tastics/index.tsx file
   Register the example/star-wars-all-films Frontend componenttypescript

   import NotFound from './not-found';
   import Markdown from './markdown/tastic';
   import StarWarsFilms from './star-wars/all-films';
   import StarWarsFilm from './star-wars/film';

   export const tastics = {
     default: NotFound,
     'example/star-wars-all-films': StarWarsFilms,
     'example/star-wars-film': StarWarsFilm,
     'training/content/markdown': Markdown,
   };

7. Go to the** Site builder**, click New, then Create page folder, input a name (we're calling ours Star wars)
8. Select your new page folder, then click New, select Create page version, input a name (we're using films) and click Save

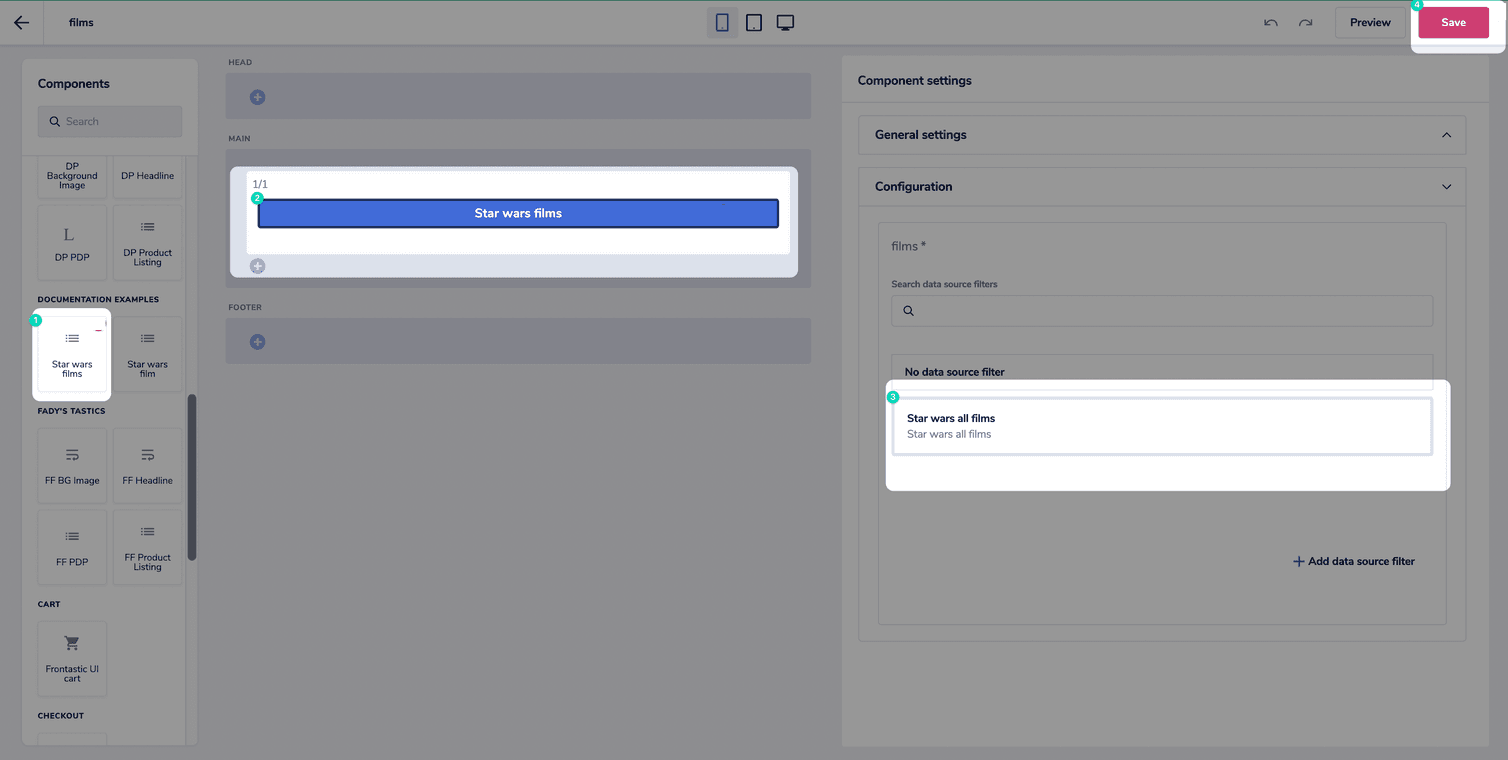

9. Drag your component into the layout element, select the Star wars all films data source, and click Save

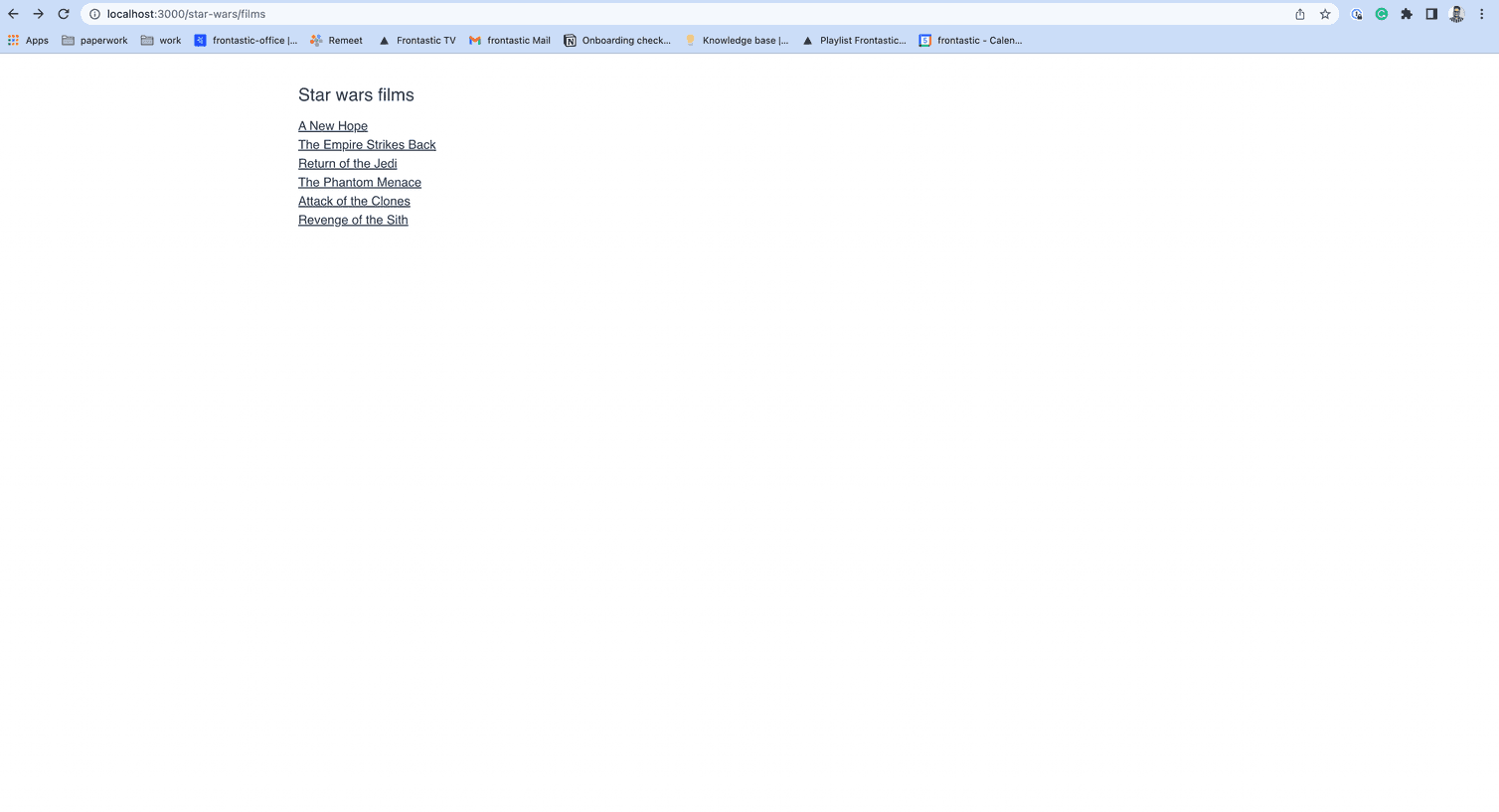

10. Open <http://localhost:3000/star-wars/films>, the films list renders in the browser.
